Stainless Steel Reactors
& Vessels
Premium grade stainless steel reactors & vessels engineered for maximum corrosion resistance, superior heat transfer, and strict GMP compliance. Built for your most demanding chemical and pharmaceutical processes.

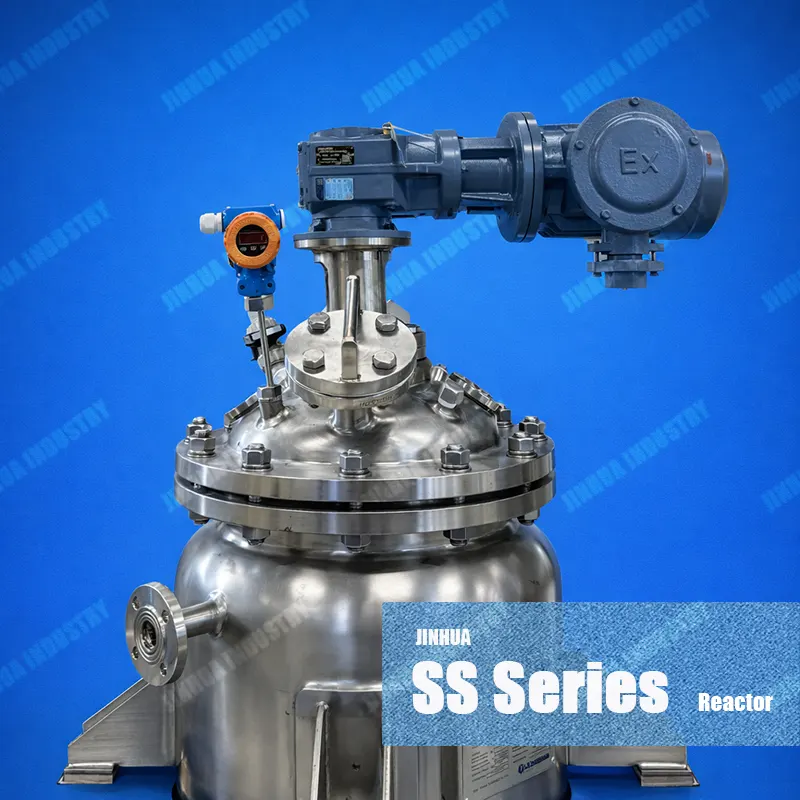

SS Series Premium Reactors
Heavy-Duty Construction for Critical Chemical Processes
The JINHUA SS Series is widely applied to modern chemical and pharmaceutical manufacturing. Fabricated with obsessive attention to detail, these vessels deliver exceptional heat transfer, structural integrity, and strict GMP compliance for contamination-free processing.
- Scalable Capacities: From Lab & Pilot to Full-Scale Production. Available in 5L, 30L, 50L, 100L, 200L, 300L, 500L, 630L, 800L, 1000L, 2000L, 3000L, 5000L and custom large volumes upon request.
- Premium MOC: Crafted from high-grade SS304, SS316L, SS321, and SS316Ti, ensuring ultimate corrosion resistance against aggressive media.
- Operating Conditions: Designed to withstand demanding environments. Standard operating pressures from Full Vacuum to High Positive Pressure, and temperatures up to 300°C (customizable).
- Sanitary Finish: Internal surfaces are precision mechanically polished to a mirror finish (Ra < 0.4 µm or better), eliminating dead zones and fully supporting CIP/SIP integration.
- Ex-Proof Drives & Controls: Equipped with high-torque gear motors featuring ATEX / UL certified Explosion-Proof (Ex-d) housings. Available with customized PLC/HMI Control Cabinets for precise parameter automation.

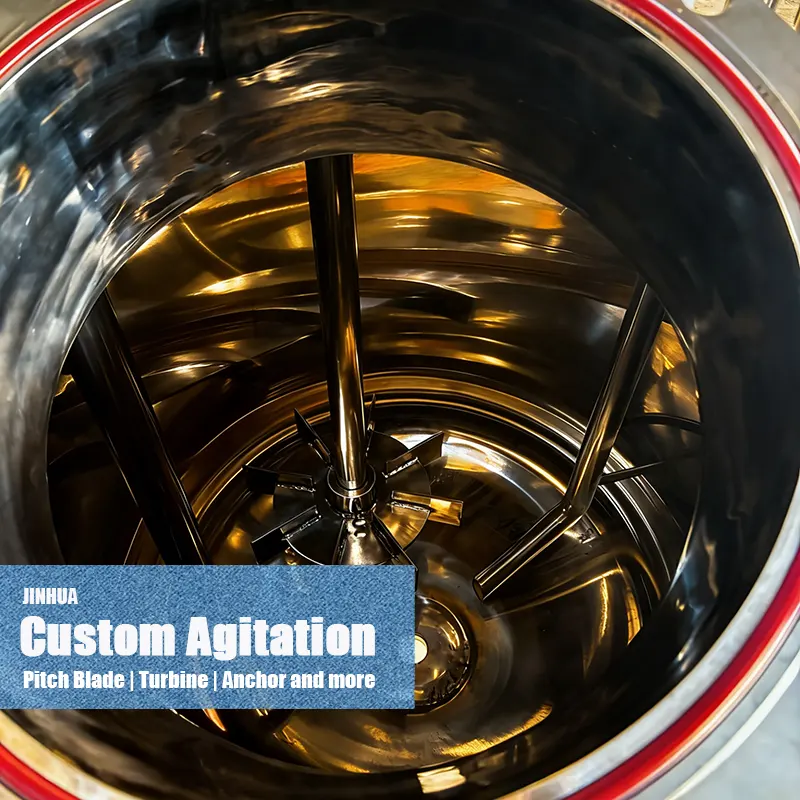

Custom Agitation Solutions
Optimized Fluid Dynamics for Any Viscosity
Mixing is the heart of your reaction. A one-size-fits-all approach doesn’t work for complex chemical processes. That’s why JINHUA offers bespoke agitation systems tailored to your specific fluid properties and reaction kinematics.
- Versatile Impeller Types: Pitch blade, flat turbine, anchor, ribbon, and high-shear dispersers available.
- Precision Balancing: All agitator shafts are dynamically balanced to ensure vibration-free, low-noise operation, extending the life of mechanical seals.
- Baffle Optimization: Custom-designed internal baffles to eliminate vortexing and dead zones, maximizing mass and heat transfer.
- Advanced Mechanical Seals: Options include single, double, or magnetic drive seals (e.g., Burgmann) to guarantee zero leakage under high pressure or vacuum conditions.
- Specialized Coatings: Agitators can be PTFE/PFA lined, glass-lined, or fabricated from exotic alloys (Hastelloy, Titanium) for ultra-corrosive media.
Our custom agitation systems are trusted globally in demanding applications, including active pharmaceutical ingredients (APIs), polymers & resins, petrochemicals, agrochemicals, and fine chemical crystallization.
Our Proven Delivery Process
Engineering & Design
We analyze your specific media, temperature, and pressure requirements to provide precise designs and optimal agitator selection.
Precision Manufacturing
Engineered to endure. Every vessel is precision-fabricated and tested. We ensure your reactor delivers decades of safe, high-performance operation.
Delivery & Support
Securely packed for shipping with comprehensive documentation. We provide remote commissioning support and lifetime technical assistance.
Need a Custom Stainless Steel Reactor or Vessel？
Consult with our technical experts today based on your specific capacity, pressure, and mixing requirements.
