Glass-Lined Reactors
Delivering superior anti-corrosion protection in harsh acidic environments. Our reactors combine high-efficiency agitation with reliability to maximize your equipment's operational life.

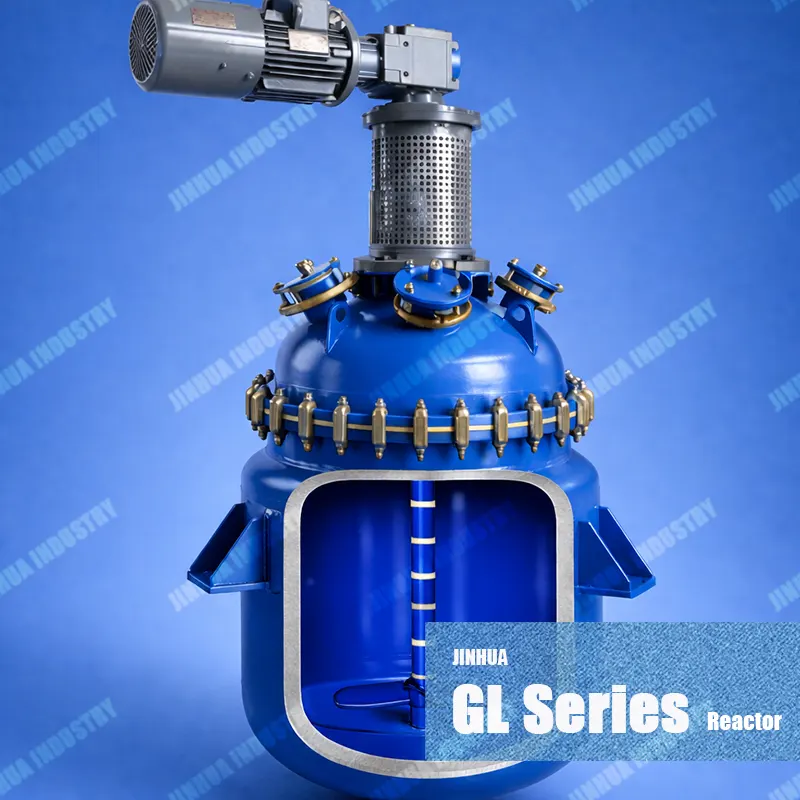

JINHUA GL Series Reactor
Unyielding Performance in Harsh Environments. Engineered for highly corrosive processes with zero compromise on purity.
The JINHUA Glass-Lined (GL) Reactor seamlessly combines the structural strength of steel with the exceptional chemical inertness of glass. By fusing a high-performance enamel coating to a robust metal base at extreme temperatures, we deliver a reaction vessel that withstands the most aggressive acidic media.
Whether you are scaling up fine chemical synthesis, pharmaceutical APIs, or complex polymerizations, our GL Series provides the ultimate defense against corrosion, ensuring a pristine, contamination-free processing environment.
- Scalable Capacities: From Lab to Full-Scale Production. Standard capacities range from 20L up to 20,000L, with custom larger volumes available upon request.
- Operating Range: Working temperatures from -20°C to 200°C and pressures from full vacuum up to 1.0 MPa, covering diverse and demanding reaction processes.
- Versatile Agitator Types: Customized mixing solutions including Anchor, Paddle, 3-Blade Impeller, Axial, Hydrofoil, PBD, Scraper, and Turbo glass-lined agitators.
- Standard & Custom Structures: Manufactured in standard K & F Types (Open/Close type). Compliant with China GB standard, ASME code and CE (PED) directives.
- Unmatched Media Compatibility: Resistant to various organic/inorganic acids (sulfuric, nitric) and weak alkalines. (Note: Not recommended for hydrofluoric acid or highly concentrated hot phosphoric acid).

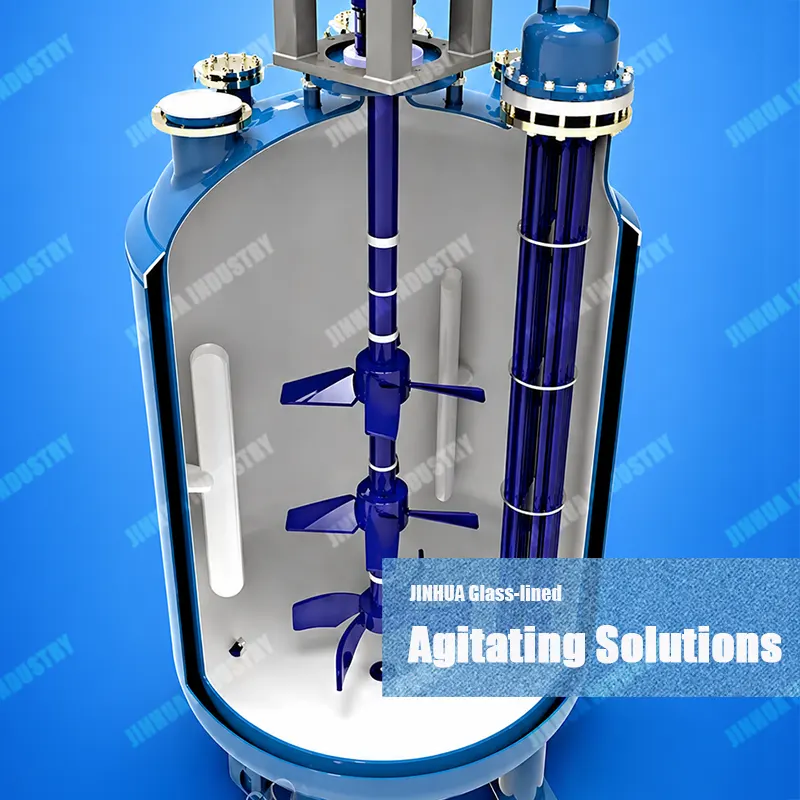

Advanced Glass-Lined Agitation
Driven by a robust motor and gear reducer, our glass-lined agitators generate powerful radial and axial flows. This motion creates intense shearing, mixing, and diffusion, ensuring materials are rapidly and homogeneously stirred, even in highly viscous conditions.
Reliable Sealing & Safe Operation
To maintain strict pressure or vacuum integrity during operation, we provide premium single or double Mechanical Seals from famous brands. For safe material feeding, customizable Glass-Lined Dip Pipes are available in various lengths to reach the vessel bottom as required by your process.
ModuPlant Series
Modular Mini-Plants for Advanced Scale-Up
When your process outgrows a single mobile skid but isn’t ready for a massive custom-built facility, the JINHUA ModuPlant Series bridges the gap. Designed for kilo-lab and small-batch production (typically 300L to 2,000L), these systems are fully pre-assembled and tested in our factory, then intelligently divided into transportable modules for rapid on-site reassembly.
Smart Modular Architecture: The entire system is engineered into shippable sections (e.g., reactor skid, overheads skid) that fit standard shipping containers, drastically reducing field installation time and costs.
Pre-Tested Reliability (FAT): Fully assembled and subjected to rigorous Factory Acceptance Testing (FAT) before disassembly and shipping, guaranteeing plug-and-play performance upon arrival.
Comprehensive Integration: Incorporates larger-scale components including multi-stage condensers, phase separators, dosing systems, and centralized PLC control matrices.
Versatile Materials of Construction (MOC): To meet the rigorous demands of your specific process, the reactor, condenser, receiver, and piping matrix can be custom-engineered in a variety of premium materials. Options include Glass-Lined Steel, 304/316L Stainless Steel, PTFE/PFA-Lined Steel, or other specialized highly corrosion-resistant alloys upon request.
Our Proven Delivery Process
Skid Design
We can design the complete modular layout to ensure perfect space utilization and maintenance access
In-House Fabrication & FAT
Fully built and strictly tested in our facility to guarantee performance before shipping.
Easy On-Site Assembly
Shipped in smart modules with detailed P&ID and assembly guides for quick, hassle-free installation at your site.
Ready to Scale Up Your Production?
Consult with our process engineers today to configure the perfect modular reactor system for your next project.
