Skid Mounted Reaction Unit
Fully integrated modular systems for your unique chemical processing needs. From R&D pilot plants to full-scale production.
ChemPilot Series
Your Flexible Bridge from R&D to Production

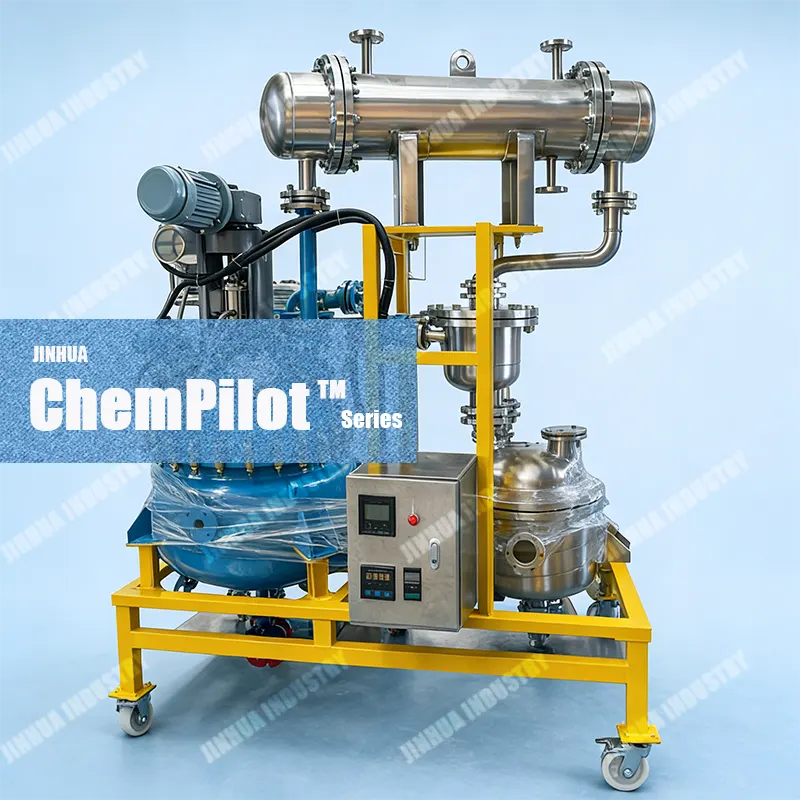

Designed specifically for pilot-scale reactions and kilo-lab applications, the JINHUA ChemPilot Series is a fully integrated, skid-mounted reaction unit. It combines superior chemical resistance—through versatile material options like Glass-lined steel, stainless steel or PTFE—lined steelwith the unparalleled flexibility required in process development.
Plug-and-Play Mobility: Mounted on a robust wheeled skid frame, allowing easy relocation within your facility.
All-in-One Integration: Pre-assembled with reactor, condenser, receiving vessel, pipelines, valves and a centralized control cabinet for precise parameter monitoring.
Ultimate Corrosion Resistance: Capable of handling highly aggressive media (acids, alkalis, solvents) safely and purely.
Customizable Capacity: Available in volumes ranging from 20L to 300L to perfectly match your scale-up requirements
- Versatile Materials of Construction (MOC):
To meet the rigorous demands of your specific process, the reactor, condenser, receiver, and piping matrix can be custom-engineered in a variety of premium materials. Options include Glass-Lined Steel, 304/316L Stainless Steel, PTFE/PFA-Lined Steel, or other specialized highly corrosion-resistant alloys upon request. Please contact JINHUA technical team for comprehensive solutions.
ModuPlant Series
Modular Mini-Plants for Advanced Scale-Up
When your process outgrows a single mobile skid but isn’t ready for a massive custom-built facility, the JINHUA ModuPlant Series bridges the gap. Designed for kilo-lab and small-batch production (typically 300L to 2,000L), these systems are fully pre-assembled and tested in our factory, then intelligently divided into transportable modules for rapid on-site reassembly.
Smart Modular Architecture: The entire system is engineered into shippable sections (e.g., reactor skid, overheads skid) that fit standard shipping containers, drastically reducing field installation time and costs.
Pre-Tested Reliability (FAT): Fully assembled and subjected to rigorous Factory Acceptance Testing (FAT) before disassembly and shipping, guaranteeing plug-and-play performance upon arrival.
Comprehensive Integration: Incorporates larger-scale components including multi-stage condensers, phase separators, dosing systems, and centralized PLC control matrices.
Versatile Materials of Construction (MOC): To meet the rigorous demands of your specific process, the reactor, condenser, receiver, and piping matrix can be custom-engineered in a variety of premium materials. Options include Glass-Lined Steel, 304/316L Stainless Steel, PTFE/PFA-Lined Steel, or other specialized highly corrosion-resistant alloys upon request.
Our Proven Delivery Process
Skid Design
We can design the complete modular layout to ensure perfect space utilization and maintenance access
In-House Fabrication & FAT
Fully built and strictly tested in our facility to guarantee performance before shipping.
Easy On-Site Assembly
Shipped in smart modules with detailed P&ID and assembly guides for quick, hassle-free installation at your site.
Ready to Scale Up Your Production?
Consult with our process engineers today to configure the perfect modular reactor system for your next project.
